**I. Introduction to Soil Moisture Sensor**
1. The soil moisture sensor is designed for measuring the moisture content in the soil, making it ideal for agricultural and environmental monitoring applications.
2. The module includes a blue potentiometer that allows users to adjust the moisture threshold. Turning the potentiometer clockwise increases the threshold, while turning it counterclockwise decreases it.
3. The digital output (D0) can be directly connected to a microcontroller, such as an Arduino, which detects high or low levels to determine the moisture level.
4. The analog output (AO) provides a range of 0–1023, which can be connected to an ADC module for more precise readings of soil moisture levels.
**II. Features and Functions of the Soil Moisture Sensor**

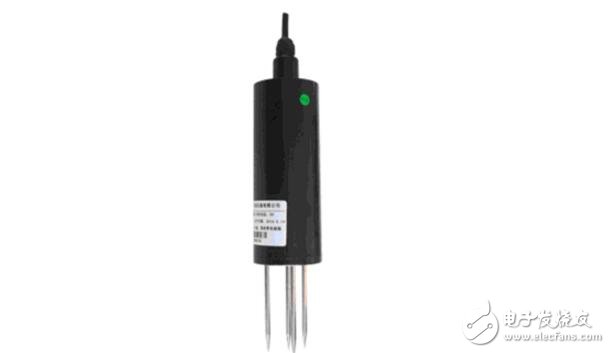

The sensor is compact, portable, and easy to install, making it suitable for both indoor and outdoor use. Its design is practical and durable, with stainless steel probes ensuring long-term performance. The outer casing is made of epoxy resin, offering excellent waterproofing and resistance to corrosion, allowing it to be buried directly in the soil without damage.
The sensor has high measurement accuracy, stable performance, and fast response time, making it reliable for real-time monitoring. It is widely used in smart irrigation systems, greenhouses, and other applications where soil moisture control is essential.
**III. Main Technical Parameters**
1. Due to long-term exposure to moisture, the typical lifespan is around one year, though this may vary depending on the manufacturing process.
2. The threshold can be adjusted using the potentiometer. When the soil moisture is below the set value, the D0 output goes high, and the indicator light turns on. When the moisture is above the set value, D0 outputs low, and the light turns off.
3. The module uses an LM393 comparator for stable operation.
4. It operates within a voltage range of 3.3V to 5V. At 3V, the AO reading in air is up to 695, and in water, it drops to 245. At 5V, the maximum AO reading in air is 1023, while in water it remains at 245.
**IV. Bill of Materials (BOM)**
- Arduino Uno × 1
- Soil Moisture Sensor × 1
- Jumper wires × several
**V. Wiring Method**
**Pin Description**
- VCC: Connects to an external power supply (3.3V–5V).
- GND: Connects to the ground.
- DO: Digital output interface (high or low signal).
- AO: Analog output (0–1023).
Note: The two wires from the sensor are not polarized; just connect them to the probe without worrying about positive or negative polarity.
